Spring MVC 流程梳理

blacklad大约 9 分钟SpringSpring

Spring MVC 流程梳理

Spring MVC 是一个基于 servlet 的 web 框架，所有的 web 请求会先到 DispatcherServlet, 由 DispatcherServlet 根据请求的信息进行分配处理。

Spring boot autoconfigure 中的自动配置类 DispatcherServletAutoConfiguration 会自动的将DispatcherServlet 放入到容器中，Spring 在启动的过程中，会将该 Servlet 注册到 Tomcat 的 context 中。

1 代码流程

web 容器通过 Servlet 的 service 方法作为入口, 传入 request 和 response 对象。

void service(ServletRequest req, ServletResponse res)

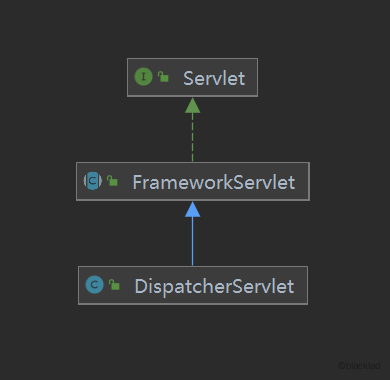

中间的抽象类 FrameworkServlet 实现了一些骨架方法，最终请求会来到 DispatchServlet 类中的 doDispatch() 方法里。

// org.springframework.web.servlet.DispatcherServlet

    /**
     * Process the actual dispatching to the handler.
     * <p>The handler will be obtained by applying the servlet's HandlerMappings in order.
     * The HandlerAdapter will be obtained by querying the servlet's installed HandlerAdapters
     * to find the first that supports the handler class.
     * <p>All HTTP methods are handled by this method. It's up to HandlerAdapters or handlers
     * themselves to decide which methods are acceptable.
     * @param request current HTTP request
     * @param response current HTTP response
     * @throws Exception in case of any kind of processing failure
     */
    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;

        // 异步处理管理器
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

            try {
                // 是否是Multipart请求
                processedRequest = checkMultipart(request);
                multipartRequestParsed = (processedRequest != request);

                // Determine handler for the current request.
                // 根据当前请求获取HandlerExecutionChain
                mappedHandler = getHandler(processedRequest);
                if (mappedHandler == null) {
                    noHandlerFound(processedRequest, response);
                    return;
                }

                // Determine handler adapter for the current request.
                // 根据处理器获取对应的adapter
                HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

                // Process last-modified header, if supported by the handler.
                String method = request.getMethod();
                boolean isGet = "GET".equals(method);
                if (isGet || "HEAD".equals(method)) {
                    long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                    if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
                        return;
                    }
                }

                // 调用拦截器的applyPreHandle方法
                if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                    return;
                }

                // Actually invoke the handler.
                // 实际处理请求
                mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

                if (asyncManager.isConcurrentHandlingStarted()) {
                    return;
                }

                applyDefaultViewName(processedRequest, mv);
                // 拦截器的postHandle
                mappedHandler.applyPostHandle(processedRequest, response, mv);
            }
            catch (Exception ex) {
                dispatchException = ex;
            }
            catch (Throwable err) {
                // As of 4.3, we're processing Errors thrown from handler methods as well,
                // making them available for @ExceptionHandler methods and other scenarios.
                dispatchException = new NestedServletException("Handler dispatch failed", err);
            }
            // 处理结果
            processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
        }
        catch (Exception ex) {
            // 拦截器的afterCompletion方法
            triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
        }
        catch (Throwable err) {
            triggerAfterCompletion(processedRequest, response, mappedHandler,
                    new NestedServletException("Handler processing failed", err));
        }
        finally {
            if (asyncManager.isConcurrentHandlingStarted()) {
                // Instead of postHandle and afterCompletion
                if (mappedHandler != null) {
                    // 对于异步的请求，调用拦截器的afterConcurrentHandlingStarted方法
                    mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
                }
            }
            else {
                // Clean up any resources used by a multipart request.
                if (multipartRequestParsed) {
                    cleanupMultipart(processedRequest);
                }
            }
        }
    }

1.1 获取 handler

根据请求的 request 获取执行的执行链。

// org.springframework.web.servlet.DispatcherServlet#getHandler

    /**
    * Return the HandlerExecutionChain for this request.
    * <p>Tries all handler mappings in order.
    * @param request current HTTP request
    * @return the HandlerExecutionChain, or {@code null} if no handler could be found
    */
    @Nullable
    protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
        if (this.handlerMappings != null) {
            for (HandlerMapping mapping : this.handlerMappings) {
                HandlerExecutionChain handler = mapping.getHandler(request);
                if (handler != null) {
                    return handler;
                }
            }
        }
        return null;
    }

// org.springframework.web.servlet.handler.AbstractHandlerMapping

    /**
     * Look up a handler for the given request, falling back to the default
     * handler if no specific one is found.
     * @param request current HTTP request
     * @return the corresponding handler instance, or the default handler
     * @see #getHandlerInternal
     */
    @Override
    @Nullable
    public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
        // 根据请求的url、method等获取对应的handler
        Object handler = getHandlerInternal(request);
        if (handler == null) {
            handler = getDefaultHandler();
        }
        if (handler == null) {
            return null;
        }
        // Bean name or resolved handler?
        if (handler instanceof String) {
            String handlerName = (String) handler;
            handler = obtainApplicationContext().getBean(handlerName);
        }

        // 获取handler执行链
        HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);

        if (logger.isTraceEnabled()) {
            logger.trace("Mapped to " + handler);
        }
        else if (logger.isDebugEnabled() && !request.getDispatcherType().equals(DispatcherType.ASYNC)) {
            logger.debug("Mapped to " + executionChain.getHandler());
        }

        if (CorsUtils.isCorsRequest(request)) {
            CorsConfiguration globalConfig = this.corsConfigurationSource.getCorsConfiguration(request);
            CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
            CorsConfiguration config = (globalConfig != null ? globalConfig.combine(handlerConfig) : handlerConfig);
            executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
        }

        return executionChain;
    }


    /**
     * Build a {@link HandlerExecutionChain} for the given handler, including
     * applicable interceptors.
     * <p>The default implementation builds a standard {@link HandlerExecutionChain}
     * with the given handler, the handler mapping's common interceptors, and any
     * {@link MappedInterceptor MappedInterceptors} matching to the current request URL. Interceptors
     * are added in the order they were registered. Subclasses may override this
     * in order to extend/rearrange the list of interceptors.
     * <p><b>NOTE:</b> The passed-in handler object may be a raw handler or a
     * pre-built {@link HandlerExecutionChain}. This method should handle those
     * two cases explicitly, either building a new {@link HandlerExecutionChain}
     * or extending the existing chain.
     * <p>For simply adding an interceptor in a custom subclass, consider calling
     * {@code super.getHandlerExecutionChain(handler, request)} and invoking
     * {@link HandlerExecutionChain#addInterceptor} on the returned chain object.
     * @param handler the resolved handler instance (never {@code null})
     * @param request current HTTP request
     * @return the HandlerExecutionChain (never {@code null})
     * @see #getAdaptedInterceptors()
     */
    protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
        HandlerExecutionChain chain = (handler instanceof HandlerExecutionChain ?
                (HandlerExecutionChain) handler : new HandlerExecutionChain(handler));

        // 将请求路径对应的拦截器放入handler中
        String lookupPath = this.urlPathHelper.getLookupPathForRequest(request);
        for (HandlerInterceptor interceptor : this.adaptedInterceptors) {
            if (interceptor instanceof MappedInterceptor) {
                MappedInterceptor mappedInterceptor = (MappedInterceptor) interceptor;
                if (mappedInterceptor.matches(lookupPath, this.pathMatcher)) {
                    chain.addInterceptor(mappedInterceptor.getInterceptor());
                }
            }
            else {
                chain.addInterceptor(interceptor);
            }
        }
        return chain;
    }
  1. this.handlerMappings 包括所有 HandlerMapping 的实现类。
  2. AbstractHandlerMapping 根据请求的 url 和 http method （Controller 中的 RequestMapping 注解）找到对应的处理器（即 Controller 中的方法）。
  3. AbstractHandlerMapping 同时也会根据请求 url 找出所有满足当前请求的拦截器。
  4. 将 handler、interceptor 组合生成一个 HandlerExecutionChain 对象并返回。

1.2 请求适配器

根据handler获取对应的adapter，RequestMappingHandlerAdapter。

// org.springframework.web.servlet.DispatcherServlet#getHandlerAdapter

    /**
     * Return the HandlerAdapter for this handler object.
     * @param handler the handler object to find an adapter for
     * @throws ServletException if no HandlerAdapter can be found for the handler. This is a fatal error.
     */
    protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
        if (this.handlerAdapters != null) {
            for (HandlerAdapter adapter : this.handlerAdapters) {
                // 找出adapter
                if (adapter.supports(handler)) {
                    return adapter;
                }
            }
        }
        throw new ServletException("No adapter for handler [" + handler +
                "]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
    }

// org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter#supports

    /**
     * This implementation expects the handler to be an {@link HandlerMethod}.
     * @param handler the handler instance to check
     * @return whether or not this adapter can adapt the given handler
     */
    @Override
    public final boolean supports(Object handler) {
        // 是否是HandlerMethond
        return (handler instanceof HandlerMethod && supportsInternal((HandlerMethod) handler));
    }

1.3 拦截器 applyPreHandle

  1. 依次执行所有的拦截器的 preHandle 方法。

  2. 所有 prehandler 都返回 true 时，继续执行后续处理流程。

  3. 其中一个 preHandle 返回 false 时。

    1. 停止执行后续的拦截器。

    2. 同时执行 triggerAfterCompletion 方法。

      1. 倒序执行已经执行过的处理器的 afterCompletion 方法。
      2. 不包括当前返回false的拦截器。

    3. 不执行后续处理流程。

// org.springframework.web.servlet.DispatcherServlet#doDispatch

if (!mappedHandler.applyPreHandle(processedRequest, response)) {
    return;
}

// org.springframework.web.servlet.HandlerExecutionChain#applyPreHandle

    /**
     * Apply preHandle methods of registered interceptors.
     * @return {@code true} if the execution chain should proceed with the
     * next interceptor or the handler itself. Else, DispatcherServlet assumes
     * that this interceptor has already dealt with the response itself.
     */
    boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            // 正序遍历
            for (int i = 0; i < interceptors.length; i++) {
                HandlerInterceptor interceptor = interceptors[i];
                if (!interceptor.preHandle(request, response, this.handler)) {
                    triggerAfterCompletion(request, response, null);
                    return false;
                }
                // 执行成功后index加1
                this.interceptorIndex = i;
            }
        }
        return true;
    }

// org.springframework.web.servlet.HandlerExecutionChain#triggerAfterCompletion

    /**
     * Trigger afterCompletion callbacks on the mapped HandlerInterceptors.
     * Will just invoke afterCompletion for all interceptors whose preHandle invocation
     * has successfully completed and returned true.
     */
    void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, @Nullable Exception ex)
            throws Exception {

        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            // 倒序遍历
            for (int i = this.interceptorIndex; i >= 0; i--) {
                HandlerInterceptor interceptor = interceptors[i];
                try {
                    interceptor.afterCompletion(request, response, this.handler, ex);
                }
                catch (Throwable ex2) {
                    logger.error("HandlerInterceptor.afterCompletion threw exception", ex2);
                }
            }
        }
    }

1.4 执行 handler

  1. 使用 HandlerMethodArgumentResolver 将请求的数据解析为调用方法的参数。
  2. 调用方法处理。
  3. 使用 HandlerMethodReturnValueHandler 对返回的对象解析。
  4. 生成 ModelAndView （如果返回类型需要）。
// org.springframework.web.servlet.DispatcherServlet#doDispatch

// Actually invoke the handler.
mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

// org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter#handle

    /**
     * This implementation expects the handler to be an {@link HandlerMethod}.
     */
    @Override
    @Nullable
    public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
            throws Exception {

        return handleInternal(request, response, (HandlerMethod) handler);
    }

// org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter#handleInternal

    @Override
    protected ModelAndView handleInternal(HttpServletRequest request,
            HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

        ModelAndView mav;
        checkRequest(request);

        // Execute invokeHandlerMethod in synchronized block if required.
        // 在session范围内同步执行
        if (this.synchronizeOnSession) {
            HttpSession session = request.getSession(false);
            if (session != null) {
                Object mutex = WebUtils.getSessionMutex(session);
                synchronized (mutex) {
                    mav = invokeHandlerMethod(request, response, handlerMethod);
                }
            }
            else {
                // No HttpSession available -> no mutex necessary
                mav = invokeHandlerMethod(request, response, handlerMethod);
            }
        }
        else {
            // No synchronization on session demanded at all...
            // 执行处理器
            mav = invokeHandlerMethod(request, response, handlerMethod);
        }

        if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
            if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
                applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
            }
            else {
                prepareResponse(response);
            }
        }

        return mav;
    }


// org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter#invokeHandlerMethod

    /**
     * Invoke the {@link RequestMapping} handler method preparing a {@link ModelAndView}
     * if view resolution is required.
     * @since 4.2
     * @see #createInvocableHandlerMethod(HandlerMethod)
     */
    @Nullable
    protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
            HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

        // 封装request 和 response
        ServletWebRequest webRequest = new ServletWebRequest(request, response);
        try {
            WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
            ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

            // 创建InvocableHandlerMethod，并保存一些配置
            ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
            if (this.argumentResolvers != null) {
                invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
            }
            if (this.returnValueHandlers != null) {
                invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
            }
            invocableMethod.setDataBinderFactory(binderFactory);
            invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);

            // 视图容器， model 和 view相关数据
            ModelAndViewContainer mavContainer = new ModelAndViewContainer();
            mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
            modelFactory.initModel(webRequest, mavContainer, invocableMethod);
            mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);

            AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
            asyncWebRequest.setTimeout(this.asyncRequestTimeout);

            WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
            asyncManager.setTaskExecutor(this.taskExecutor);
            asyncManager.setAsyncWebRequest(asyncWebRequest);
            asyncManager.registerCallableInterceptors(this.callableInterceptors);
            asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);

            if (asyncManager.hasConcurrentResult()) {
                Object result = asyncManager.getConcurrentResult();
                mavContainer = (ModelAndViewContainer) asyncManager.getConcurrentResultContext()[0];
                asyncManager.clearConcurrentResult();
                LogFormatUtils.traceDebug(logger, traceOn -> {
                    String formatted = LogFormatUtils.formatValue(result, !traceOn);
                    return "Resume with async result [" + formatted + "]";
                });
                invocableMethod = invocableMethod.wrapConcurrentResult(result);
            }

            // 执行handler
            invocableMethod.invokeAndHandle(webRequest, mavContainer);
            if (asyncManager.isConcurrentHandlingStarted()) {
                return null;
            }

            // 返回ModelAndView
            return getModelAndView(mavContainer, modelFactory, webRequest);
        }
        finally {
            webRequest.requestCompleted();
        }
    }

// org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod#invokeAndHandle

    /**
     * Invoke the method and handle the return value through one of the
     * configured {@link HandlerMethodReturnValueHandler HandlerMethodReturnValueHandlers}.
     * @param webRequest the current request
     * @param mavContainer the ModelAndViewContainer for this request
     * @param providedArgs "given" arguments matched by type (not resolved)
     */
    public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,
            Object... providedArgs) throws Exception {

        // 执行处理，获取返回结果
        Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);
        setResponseStatus(webRequest);

        if (returnValue == null) {
            if (isRequestNotModified(webRequest) || getResponseStatus() != null || mavContainer.isRequestHandled()) {
                disableContentCachingIfNecessary(webRequest);
                mavContainer.setRequestHandled(true);
                return;
            }
        }
        else if (StringUtils.hasText(getResponseStatusReason())) {
            mavContainer.setRequestHandled(true);
            return;
        }

        mavContainer.setRequestHandled(false);
        Assert.state(this.returnValueHandlers != null, "No return value handlers");
        try {
            // 解析返回值
            this.returnValueHandlers.handleReturnValue(
                    returnValue, getReturnValueType(returnValue), mavContainer, webRequest);
        }
        catch (Exception ex) {
            if (logger.isTraceEnabled()) {
                logger.trace(formatErrorForReturnValue(returnValue), ex);
            }
            throw ex;
        }
    }

// org.springframework.web.method.support.InvocableHandlerMethod#invokeForRequest

    /**
     * Invoke the method after resolving its argument values in the context of the given request.
     * <p>Argument values are commonly resolved through
     * {@link HandlerMethodArgumentResolver HandlerMethodArgumentResolvers}.
     * The {@code providedArgs} parameter however may supply argument values to be used directly,
     * i.e. without argument resolution. Examples of provided argument values include a
     * {@link WebDataBinder}, a {@link SessionStatus}, or a thrown exception instance.
     * Provided argument values are checked before argument resolvers.
     * <p>Delegates to {@link #getMethodArgumentValues} and calls {@link #doInvoke} with the
     * resolved arguments.
     * @param request the current request
     * @param mavContainer the ModelAndViewContainer for this request
     * @param providedArgs "given" arguments matched by type, not resolved
     * @return the raw value returned by the invoked method
     * @throws Exception raised if no suitable argument resolver can be found,
     * or if the method raised an exception
     * @see #getMethodArgumentValues
     * @see #doInvoke
     */
    @Nullable
    public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
            Object... providedArgs) throws Exception {
        // 解析参数
        Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);
        if (logger.isTraceEnabled()) {
            logger.trace("Arguments: " + Arrays.toString(args));
        }
        // 调用方法
        return doInvoke(args);
    }



    /**
     * Get the method argument values for the current request, checking the provided
     * argument values and falling back to the configured argument resolvers.
     * <p>The resulting array will be passed into {@link #doInvoke}.
     * @since 5.1.2
     */
    protected Object[] getMethodArgumentValues(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
            Object... providedArgs) throws Exception {

        MethodParameter[] parameters = getMethodParameters();
        if (ObjectUtils.isEmpty(parameters)) {
            return EMPTY_ARGS;
        }

        // 通过resolvers对参数进行解析并返回
        Object[] args = new Object[parameters.length];
        for (int i = 0; i < parameters.length; i++) {
            MethodParameter parameter = parameters[i];
            parameter.initParameterNameDiscovery(this.parameterNameDiscoverer);
            args[i] = findProvidedArgument(parameter, providedArgs);
            if (args[i] != null) {
                continue;
            }
            if (!this.resolvers.supportsParameter(parameter)) {
                throw new IllegalStateException(formatArgumentError(parameter, "No suitable resolver"));
            }
            try {
                args[i] = this.resolvers.resolveArgument(parameter, mavContainer, request, this.dataBinderFactory);
            }
            catch (Exception ex) {
                // Leave stack trace for later, exception may actually be resolved and handled...
                if (logger.isDebugEnabled()) {
                    String exMsg = ex.getMessage();
                    if (exMsg != null && !exMsg.contains(parameter.getExecutable().toGenericString())) {
                        logger.debug(formatArgumentError(parameter, exMsg));
                    }
                }
                throw ex;
            }
        }
        return args;
    }

1.5 拦截器 postHandle

倒序依次执行拦截器的postHandle方法。

// org.springframework.web.servlet.DispatcherServlet#doDispatch
mappedHandler.applyPostHandle(processedRequest, response, mv);

// org.springframework.web.servlet.HandlerExecutionChain#applyPostHandle
    /**
     * Apply postHandle methods of registered interceptors.
     */
    void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
            throws Exception {

        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            for (int i = interceptors.length - 1; i >= 0; i--) {
                HandlerInterceptor interceptor = interceptors[i];
                interceptor.postHandle(request, response, this.handler, mv);
            }
        }
    }

1.6 处理结果

  1. 如果 handler 处理过程中出现异常，此处进行异常处理。
  2. 如果存在 ModelAndView 对象，则对视图进行渲染。
  3. 最后倒序执行所有拦截器的 afterCompletion。
// org.springframework.web.servlet.DispatcherServlet#doDispatch

processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);

// org.springframework.web.servlet.DispatcherServlet#doDispatch

    /**
     * Handle the result of handler selection and handler invocation, which is
     * either a ModelAndView or an Exception to be resolved to a ModelAndView.
     */
    private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
            @Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
            @Nullable Exception exception) throws Exception {

        boolean errorView = false;

        // 出现异常 处理
        if (exception != null) {
            if (exception instanceof ModelAndViewDefiningException) {
                logger.debug("ModelAndViewDefiningException encountered", exception);
                mv = ((ModelAndViewDefiningException) exception).getModelAndView();
            }
            else {
                Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
                mv = processHandlerException(request, response, handler, exception);
                errorView = (mv != null);
            }
        }

        // Did the handler return a view to render?
        // render
        if (mv != null && !mv.wasCleared()) {
            render(mv, request, response);
            if (errorView) {
                WebUtils.clearErrorRequestAttributes(request);
            }
        }
        else {
            if (logger.isTraceEnabled()) {
                logger.trace("No view rendering, null ModelAndView returned.");
            }
        }

        if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
            // Concurrent handling started during a forward
            return;
        }

        // 执行拦截器的afterCompletion方法
        if (mappedHandler != null) {
            mappedHandler.triggerAfterCompletion(request, response, null);
        }
    }

至此，一个简单的 http 请求的处理便完成了，客户端会通过 response 中的数据进行渲染展示。

2 流程图

mvc流程
mvc流程
上次编辑于:
贡献者: blacklad
